Haugen Attachments Wheel Loader Jib
Product Description

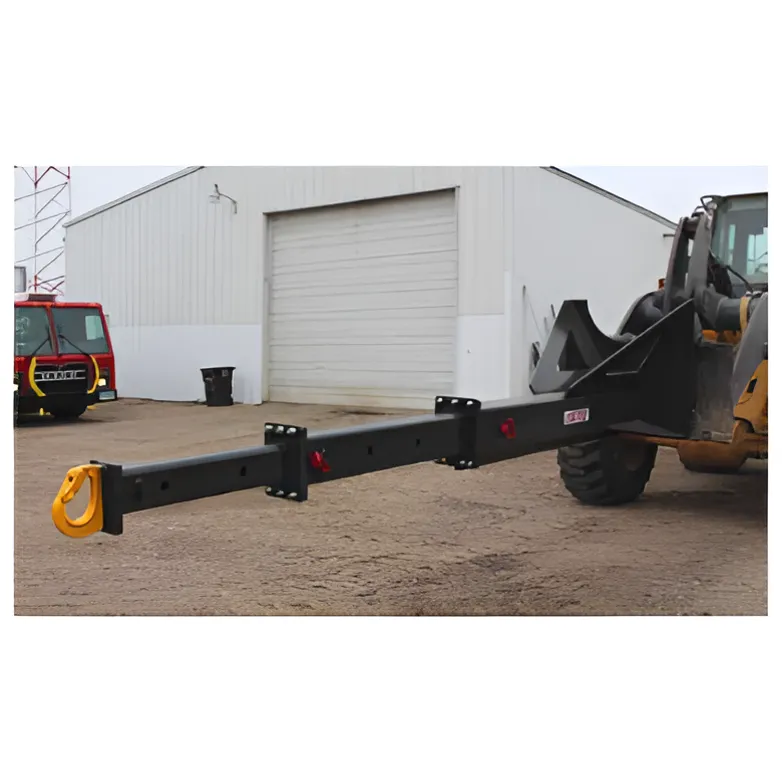

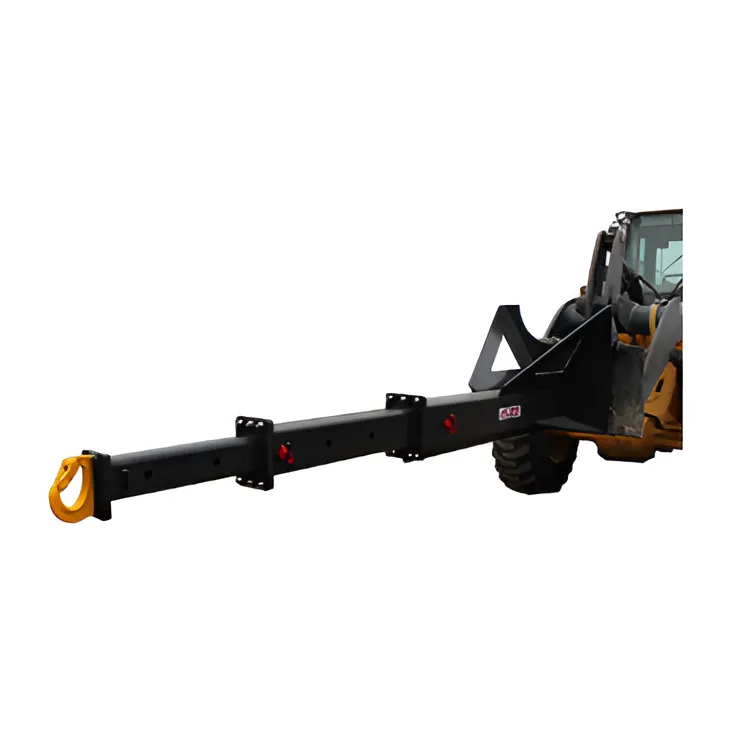

Wheel Loader Jib
- Heavy duty adjustable Jib for Wheel Loaders
- Available in a single slide and a double slide
- Heavy duty weld-on hook
- Many different positions make this a very flexible attachment
For JRB 416 & 418 Couplers
| Model | # of Slides | Min Length | Max Extension |
| MIJ-WL2-416 | Dual Slide | 24" | 13'2" |
| MIJ-WL1-416 | Single Slide | 24" | 15' |
| MIJ-WL2-418 | Dual Slide | 24" | 13'2" |
| MIJ-WL1-418 | Single Slide | 24" | 15' |
For Cat Fusion™ Couplers
| Model | # of Slides | Min Length | Max Extension |
| MIJ-WL2 | Dual Slide | 24" | 13'2" |
| MIJ-WL1 | Single Slide | 24" | 15' |
Single Slide Jib Capacity Chart
| Position | Length | Max Capacity |
| 1 | 24'' | 22000 lbs |
| 2 | 48'' | 20000 lbs |
| 3 | 72'' | 18000 lbs |
| 4 | 96'' | 11500 lbs |
| 5 | 120'' | 7800 lbs |
| 6 | 150'' | 5500 lbs |
| 7 | 180'' | 4300 lbs |
Dual Slide Jib Capacity Chart
| Position | Length | Max Capacity |
| 1 | 24'' | 22000 lbs |
| 2 | 48'' | 20000 lbs |
| 3 | 72'' | 18000 lbs |
| 4 | 98” | 11300 lbs |
| 5 | 113” | 8900 lbs |
| 6 | 128” | 7100 lbs |
| 7 | 143” | 5400 lbs |
| 8 | 158” | 4200 lbs |
