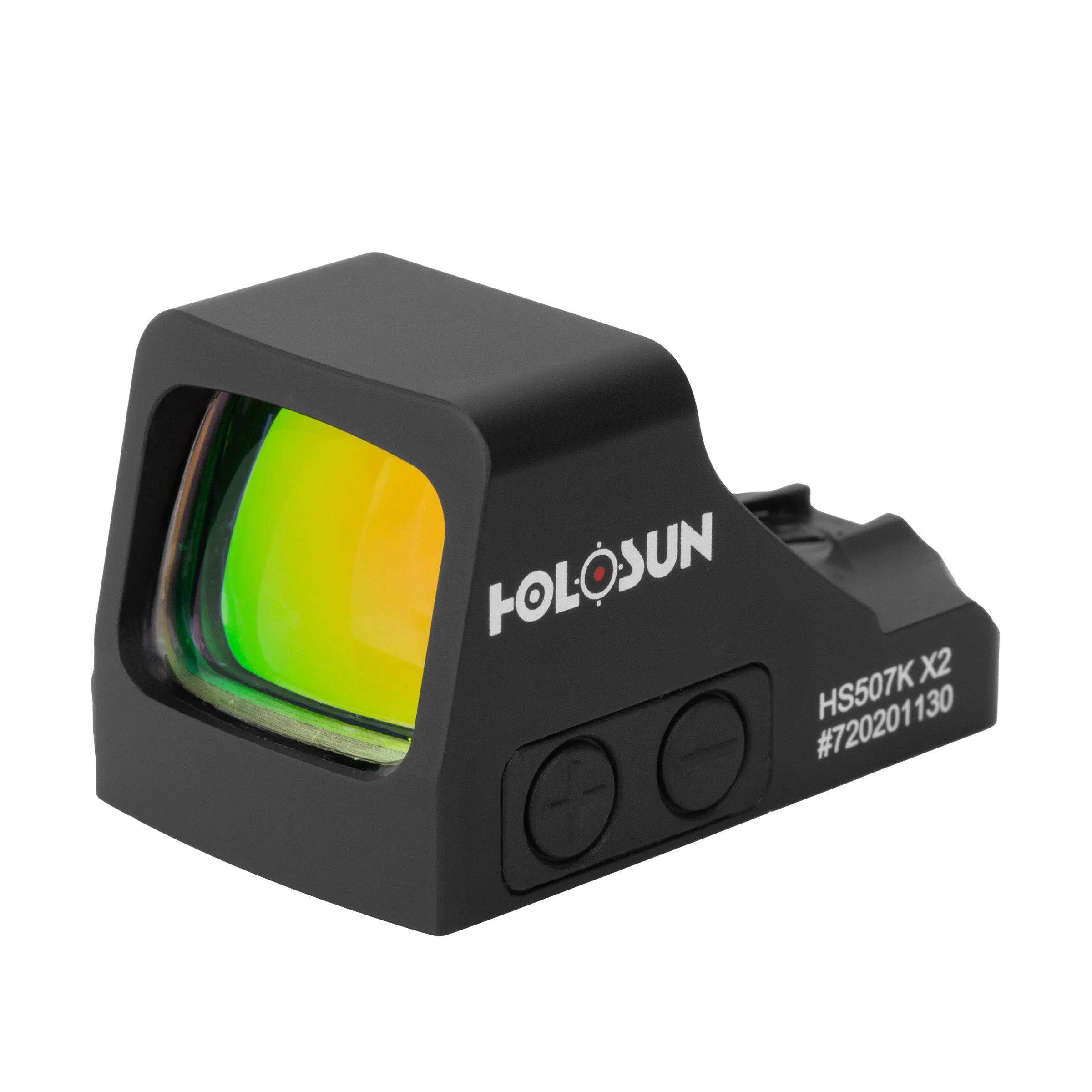

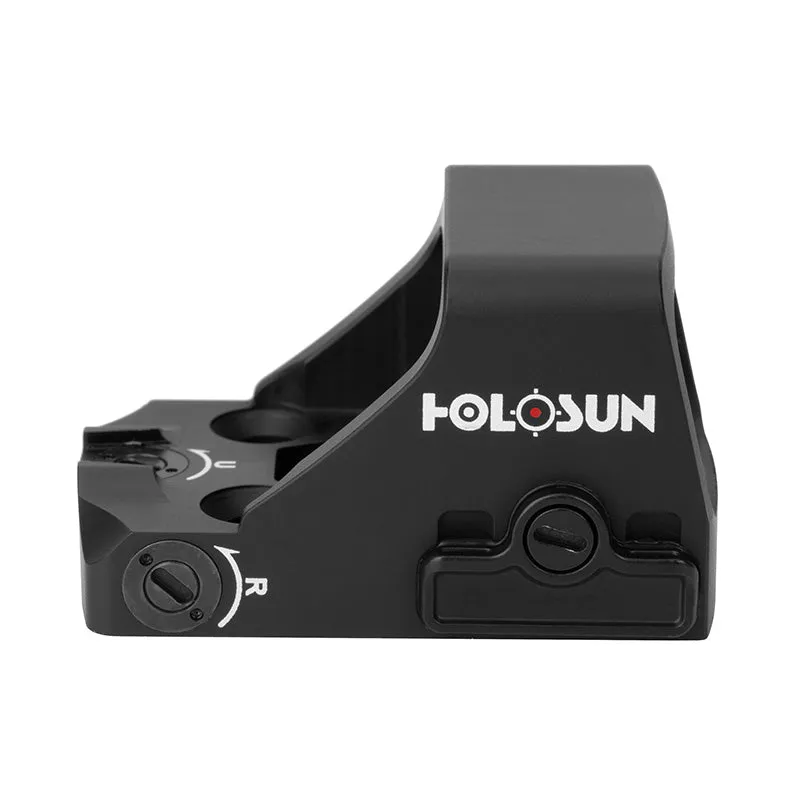

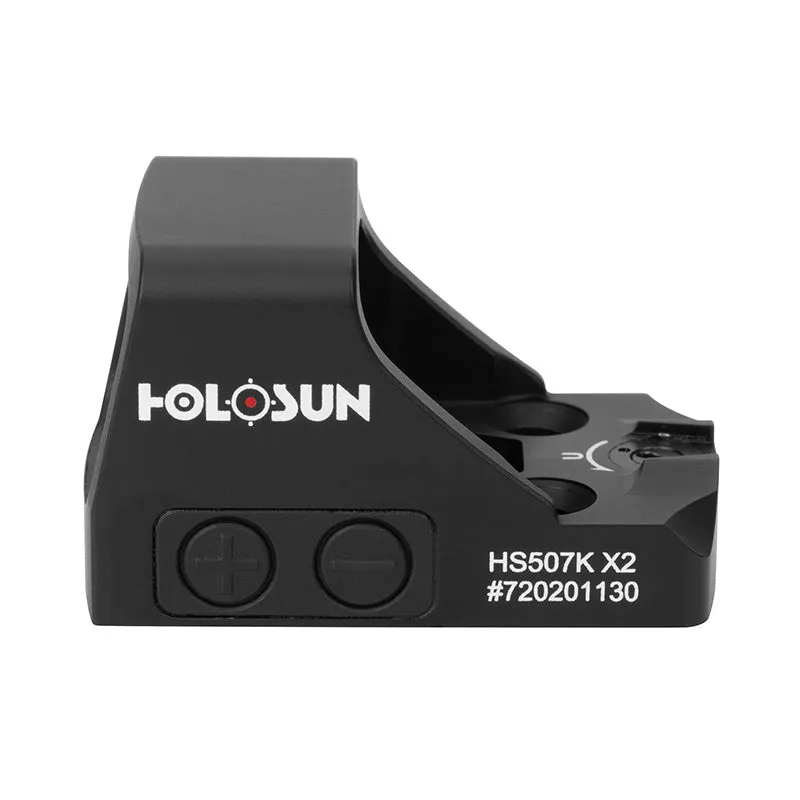

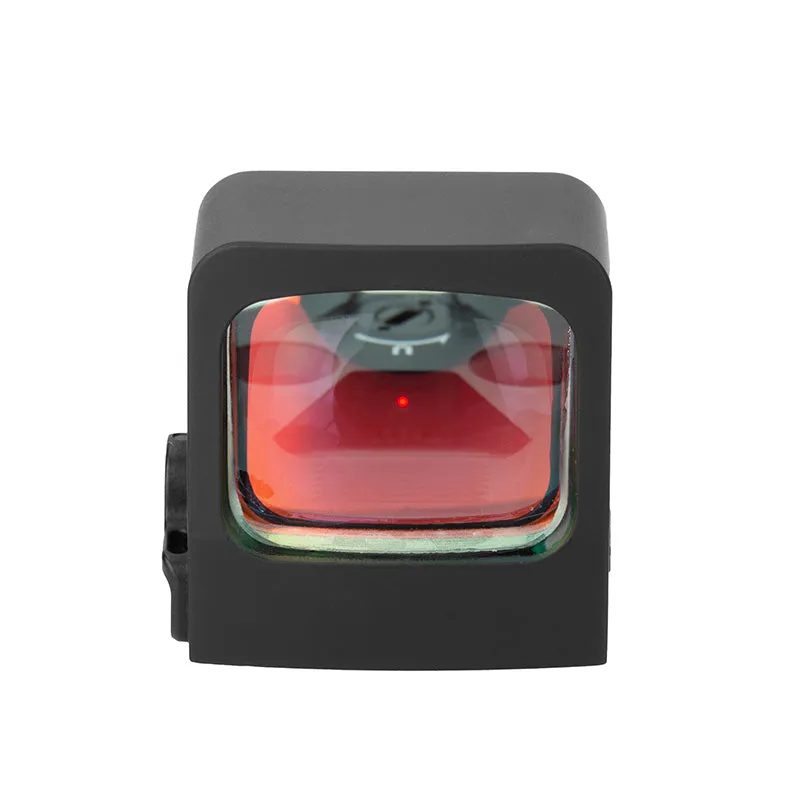

The HS507K X2 is an open reflex optical sight designed for subcompact pistol applications. The HS507K X2 improves on the previous version by adding Lock Mode which was first introduced in our 2018 LEM pistol optic models. Lock Mode, when activated, locks the buttons preventing inadvertent setting changes.
Additional features include Holosun’s Red Super LED with up to 50k hour battery life, Multi-Reticle System, and Shake Awake. The durable housing is made from 7075 Aluminum, uses Holosun’s K footprint, and houses the 1632 battery in a side-mounted tray for easy replacement when needed. The HS507K X2 is a direct for P365X/XL, and requires an adapter plate for slides with a four-boss interface.
OPTICAL SPECS
| Reticle | 2 MOA Dot & 32 MOA Circle |
| Light Wavelength | 650nm |
| Reticle Color | Red |
| Parallax Free | Yes |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ENVIRONMENT SPECS
| Storage Temperature | -20℃~65℃ |
| Working Temperature | -20℃~51℃ |
| Submersion | IP67 |
| Vibration | 5000G |
ELECTRONIC SPECS
| Power Source | Battery |
| Battery Type | CR1632 |
| Battery Life (Hours) | 50000 |
| Brightness Setting | 10 DL&2 NV |
PHYSICAL SPECS
| Window Size | 0.58x0.77 |
| Dimension (in) | 1.6x0.98x0.95 |
| Weight (oz) | 1 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 1 MOA |
| W&E Travel Range | ±30 MOA |
