Name: Fittes Brack Kit [Luxe]
SKU: 148367

Structural support kit for floating shower seats, suspended shelving/furniture, and more. It's modular design can be combined to accommodate structures with longer spans.

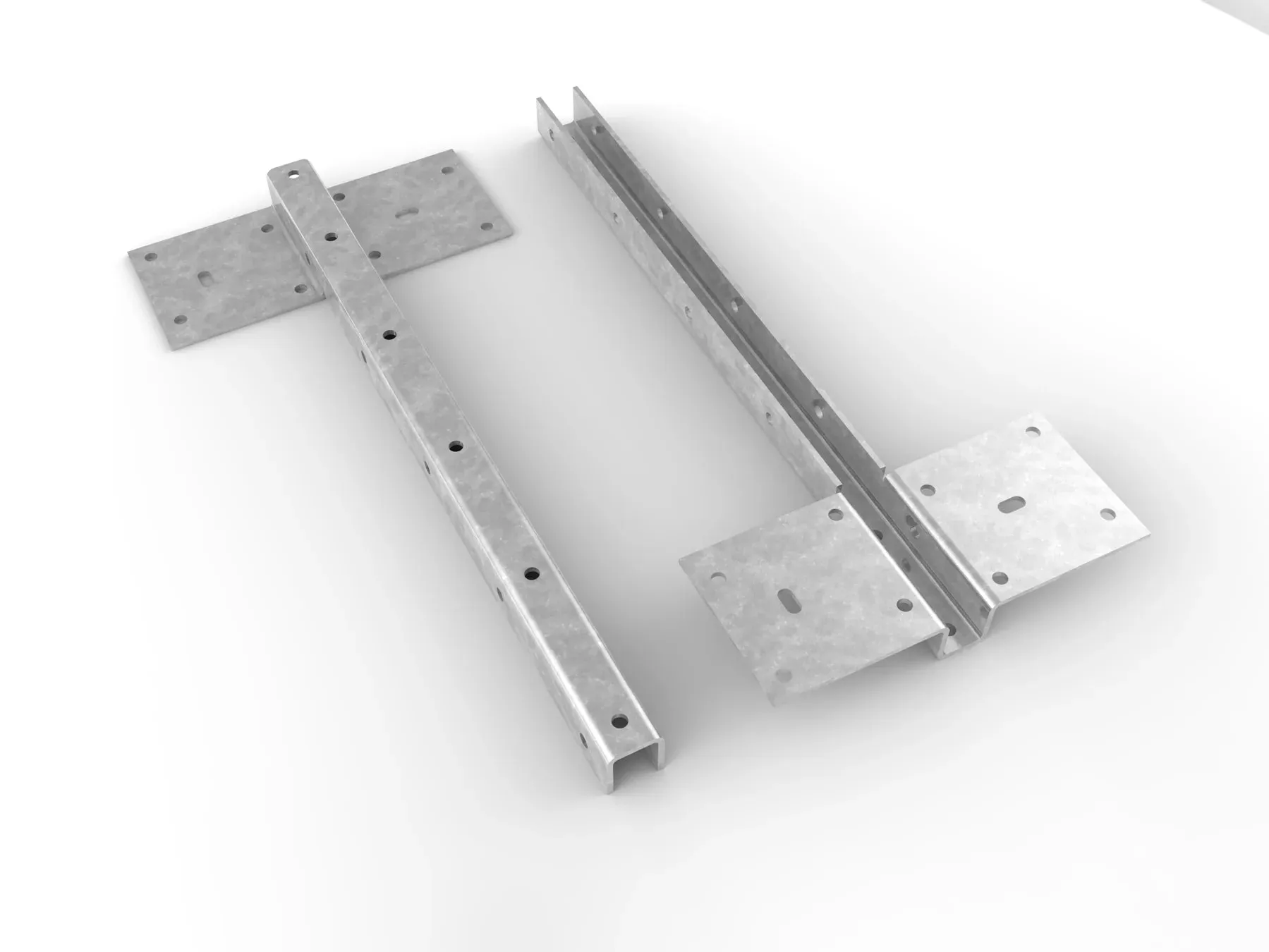

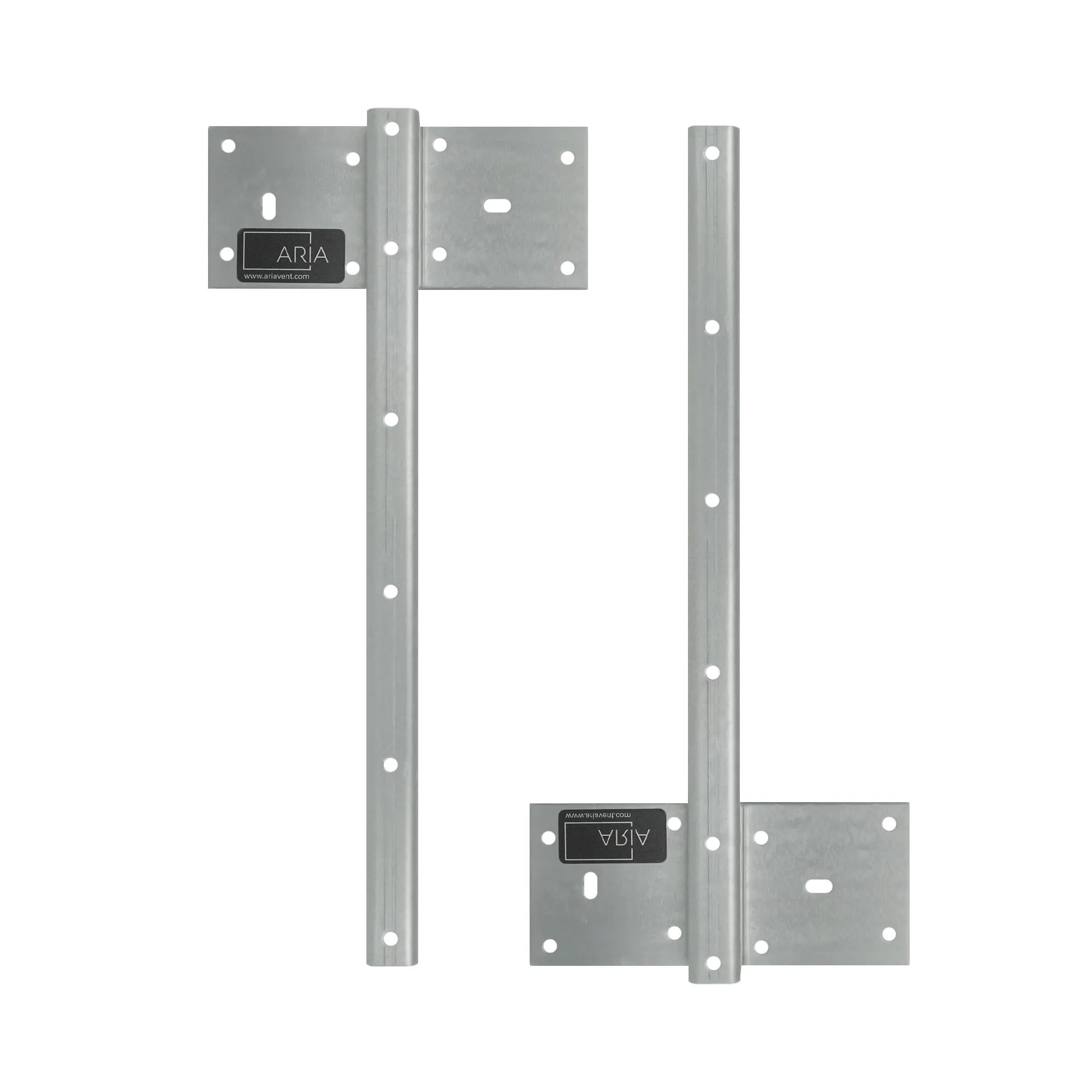

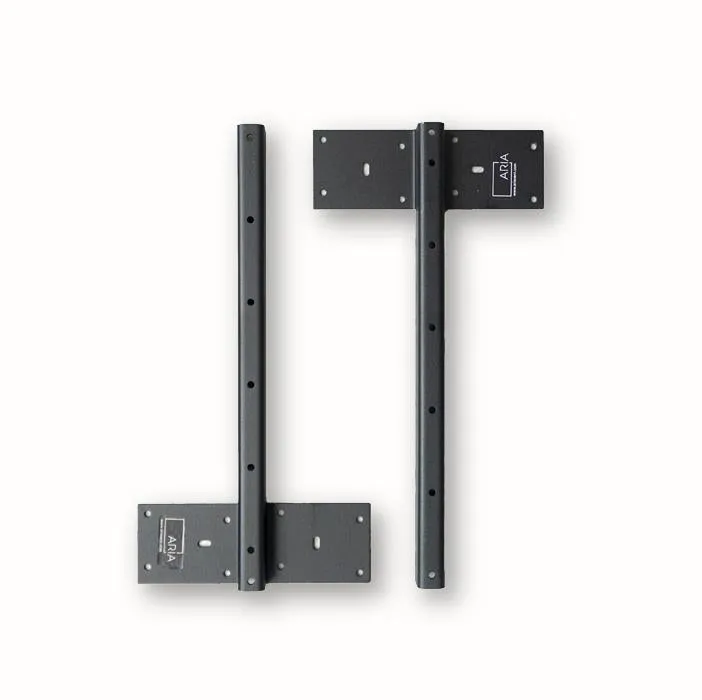

Kit contains two brackets and two sets of screws. Additional 2 3/4" screws required if combining kits are not included.
Manufactured in Canada

Features

Time saving installation for floating bench/shelf
Highest rated capacity vs. competitors (up to 350lbs per Brack-14)
Modular application
Combine kits as necessary [recommend 1 kit per 16'' span - will vary by project]
Additional 2 3/4" inch screws are required if combining kits. This is not included with the purchase of this product and must be sourced outside of Fittes

Specifications Install Guides

Material - galvanized sheet metal with a long lasting powder coating (8 gauge)
Recommended span between brackets is 16" on centre. Depending on weight of finishing material and application, span can vary.
Each bracket is rated to hold 350 lbs.
Studs must be a minimum of 2"x4"
Install is best done by a Pro.

FAQ

At what point are these brackets installed in the build process?

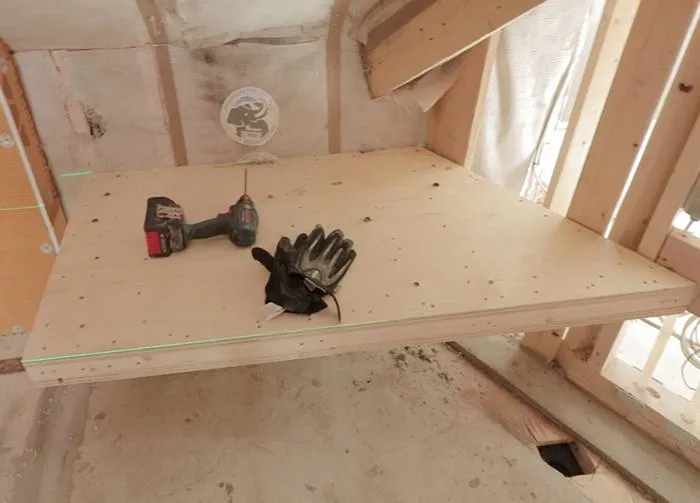

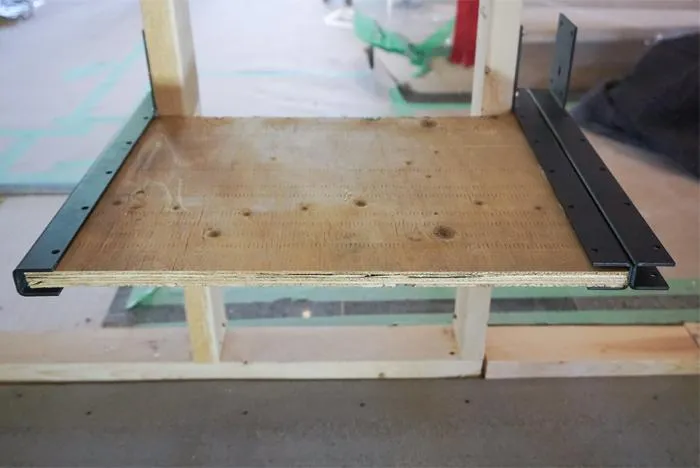

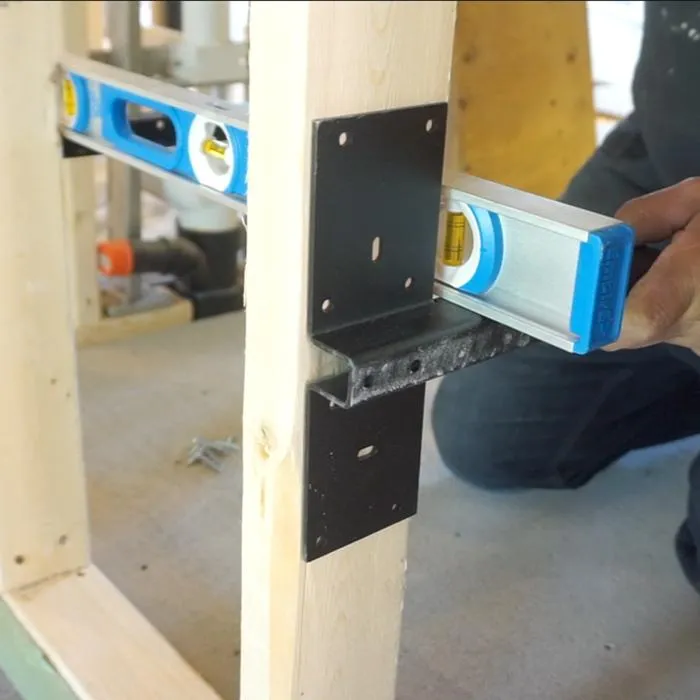

Brackets must be mounted at the rough-in stage. You must have access to the studs inside the framed wall to properly mount.

What is this used for?

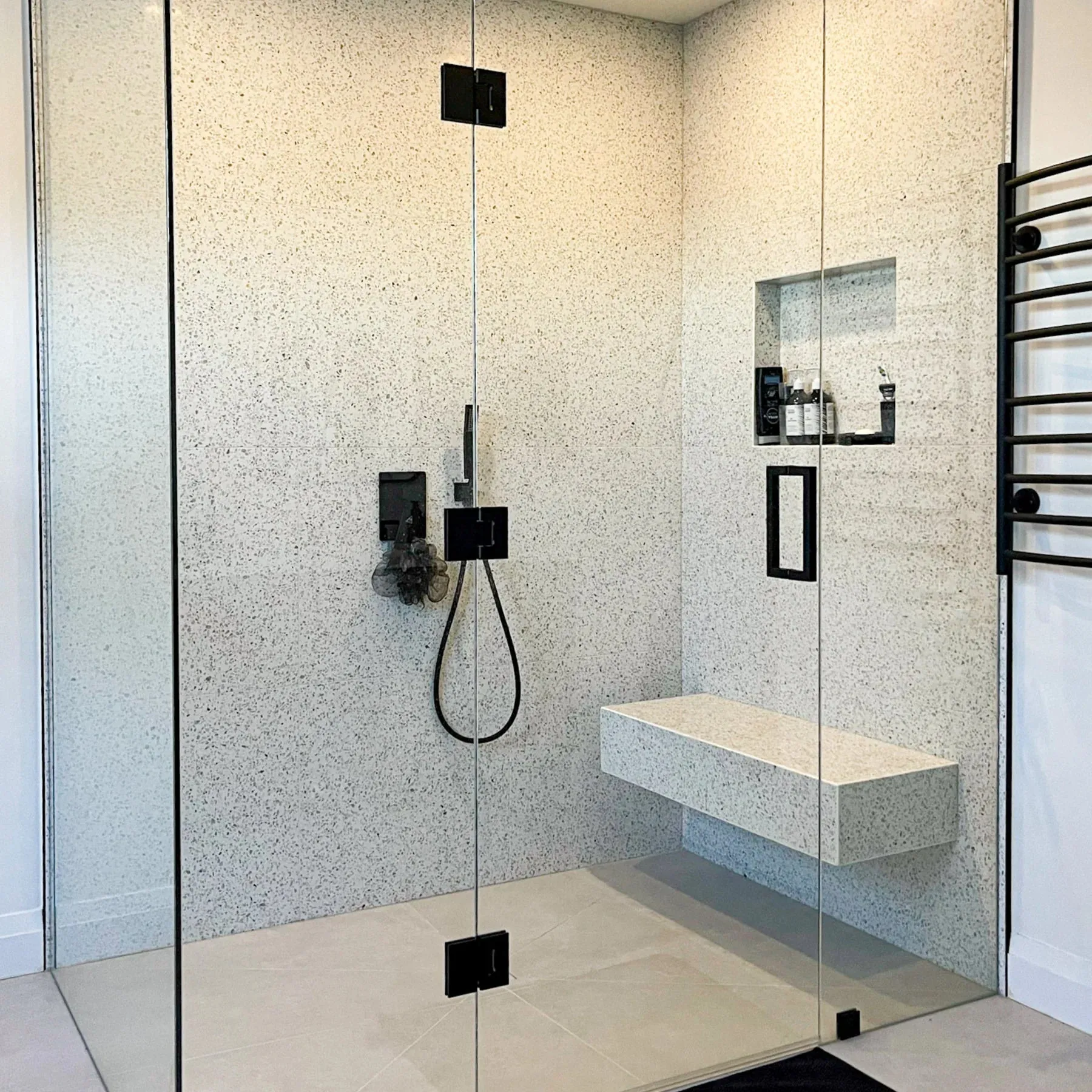

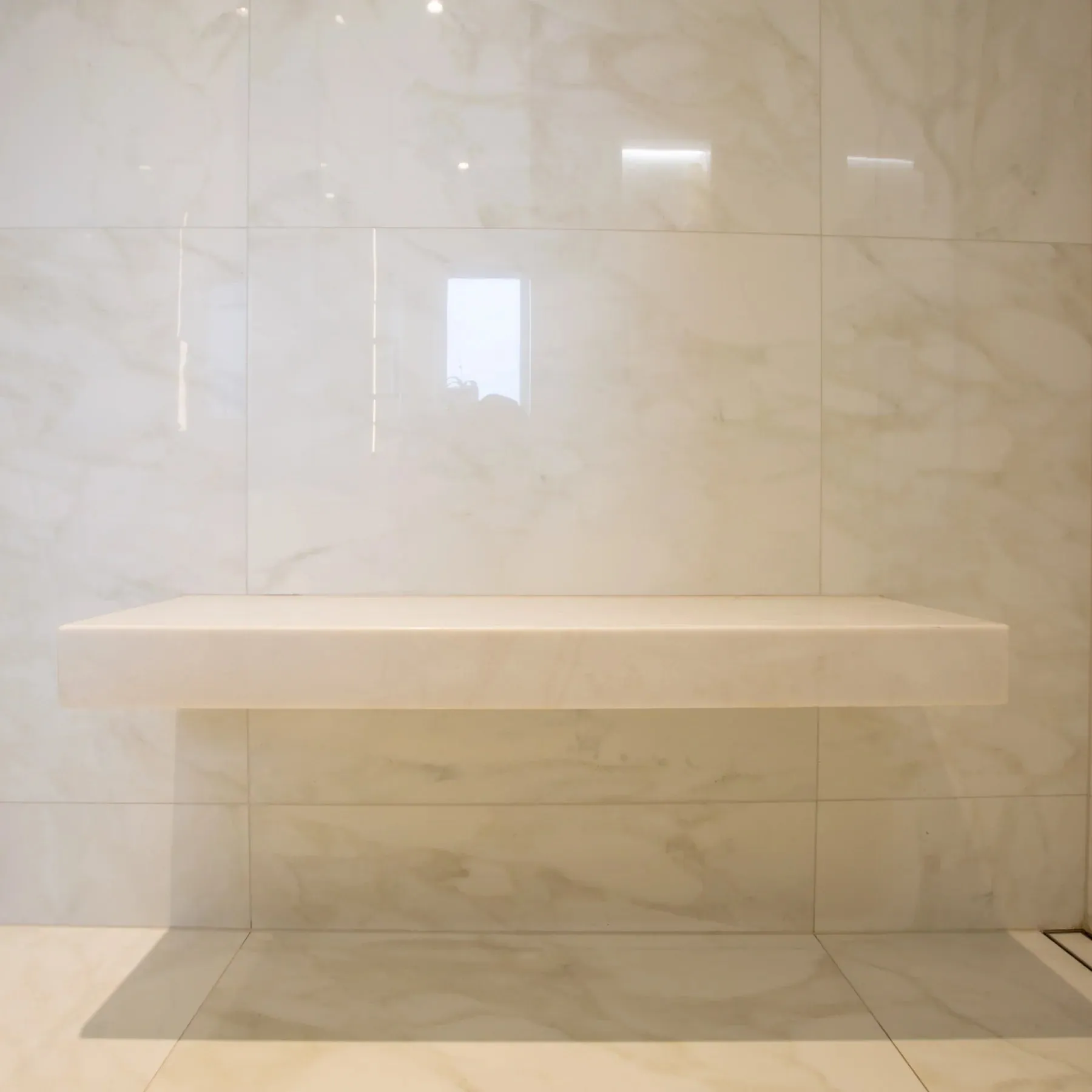

The Brack Kit [Luxe] is a structural support for any application where there is an engineered suspended structure. (ie. floating shower seat, shelves, vanity, etc.)

Can I use foam board in between the brackets?
No - foam board is not structurally sound. You must use a structurally sound material (ie. 3/4" plywood, aluminum honeycomb, solid wood, etc.)

For shower application, can I tile directly on top of the engineered seat?
No - you absolutely must waterproof prior to tiling.

Can I fasten the brackets on a 2x2 stud?
No - a minimum 2x4 stud in required. 2x6, 2x8, studs are also compatible.

Can I fasten the brackets to metal stud?
No - wood studs only.
